DucoGrille Classic F 50/75Z
DucoGrille Classic F 50/75Z

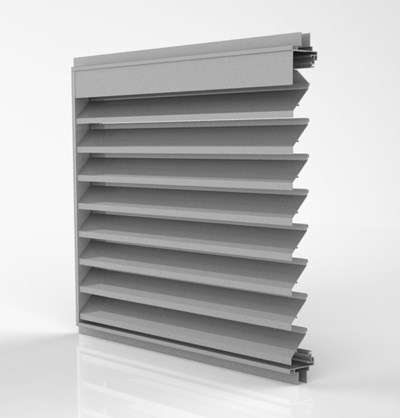

DucoGrille Classic F 50/75Z is an architectural window louvre, manufactured from extruded aluminium profiles. The Z shaped blade ensures a robust design. The insect screen, which is fitted as standard in the outside grille, is an additional significant advantage.
Technical features
| Visual free area | 80 % |
| Physical free area | 49 % |
| K factor intake | 9 |
| K factor exhaust | 13,87 |
| Ce | 0,33 |
| Cd | 0,27 |
| Fitting Depth | 77 mm |
| Blade pitch | 75 mm |
Insect mesh (S= Standard / O= Optional)
| Perforation P1 |
|
| Perforation P2 |
|
| SS insect mesh 2,3 x 2,3 mm | S |
| SS bird mesh 6 x 6 mm | O |
| SS bird mesh 20 x 20 x 0,5mm | O |
Watertightness (with insect mesh)
| v = 0 m-s | B |
| v = 0,5 m-s | C |
| v = 1 m-s | C |
| v = 1,5 m-s | C |
| v = 2 m-s | C |
| v = 2,5 m-s | D |
