DucoGrille Acoustic N 150
DucoGrille Acoustic N 150

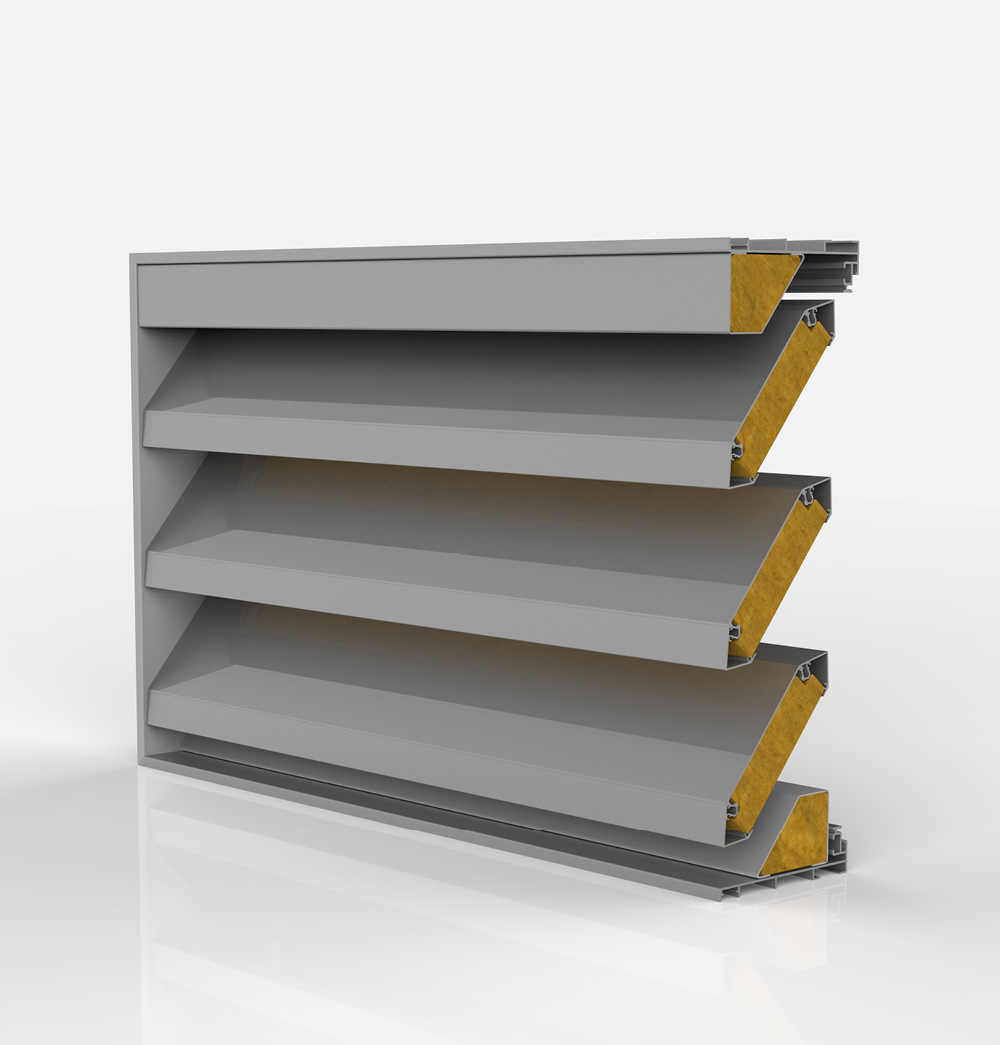

The DucoGrille Acoustic N 150 is a sound attenuating built-in wall grille, crafted from extruded aluminium profiles. The louvre blades are locked into place fast and easily on plastic blade holders, and are fitted with sound-attenuating, non-combustible mineral wool on the inside. Thanks to its solid construction, the DucoGrille Acoustic N 150 has a high damping value and a low resistance factor (and consequently a better flow rate).
Technical features
Visual free area | 74 % |
Physical free area | 35 % |
K factor intake | 11,04 |
K factor exhaust | 10,96 |
Ce | 0,30 |
Cd | 0,30 |
Fitting Depth | 165 mm |
Blade pitch | 150 mm |
Attenuation value Rw (C;Ctr) | 11 (-1;-2) dB |
Insect mesh (S= Standard / O= Optional)
Perforation P1 | |
Perforation P2 | |
SS insect mesh 2,3 x 2,3 mm | S |
SS bird mesh 6 x 6 mm | O |
SS bird mesh 20 x 20 x 0,5mm | O |
Watertightness (with insect mesh)
v = 0 m-s | B |
v = 0,5 m-s | C |
v = 1 m-s | C |
v = 1,5 m-s | C |
v = 2 m-s | D |
v = 2,5 m-s | D |
