DucoPlus 60

DucoPlus 60

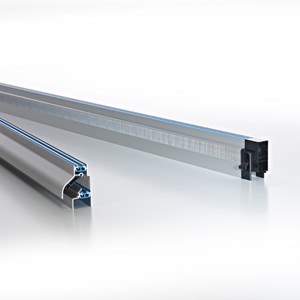

DucoPlus 60 is a compact flap window ventilator. This ventilator ensures excellent airflow in spite of a glass reduction of just 60 mm. The perforated inner grid keeps insects out.

  • Minimal glass reduction, maximum airflow
  • Favourable acoustic properties
  • Authentic DUCO 'Soft-Line' design
Technical features
Standard control Standard control = handle 30 mm mm
Glass reduction 60 mm
Rating watertightness E750
Ventilator height 75 mm
Ventilator height glazed-in 75 mm
U - value 4,02 W/m²/K
Windtightness in closed position 650 Pa
Watertightness in closed position 650 Pa


Technische eigenschappen

Ontdek alle technische eigenschappen in de technische fiche.

Caractéristiques techniques

Découvrez toutes les caractéristiques techniques dans la fiche technique.

Technical properties

Discover all the technical features in the technical datasheet.

Technische Eigenschaften

Entdecken Sie alle technischen Merkmale im technischen Datenblatt.
