DucoWall Classic W 80HP
DucoWall Classic W 80HP

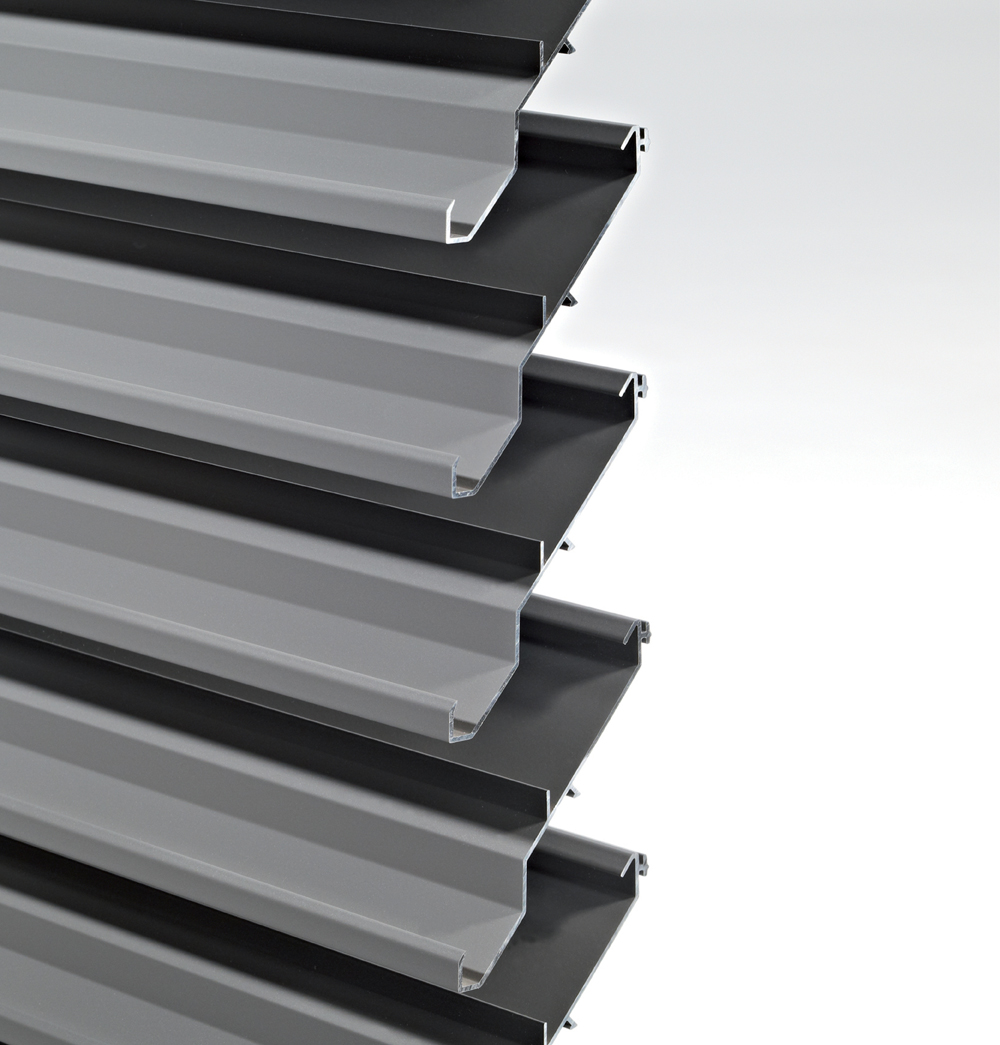

The DucoWall Classic W 80HP series is a continuous louvre wall suitable either for stand-alone use or for fitment to an existing construction. The turn and click system ensures quick and easy installation. The uniquely shaped high performance louvre blade provides excellent water repellent characteristics.
Technical features
Visual free area | 83 % |
Physical free area | 49 % |
K factor intake | 11,19 |
K factor exhaust | 13,62 |
Ce | 0,3 |
Cd | 0,27 |
Fitting Depth |
96mm (50/12) 134mm (50/50 & 21/50 MULTI) 209 mm (50/125) mm |
Blade depth | 84 mm |
Blade pitch | 75 mm |
Maximum span between 2 support mullions at 800 Pa and pressure coefficient 1.2 | 1350 mm |
Mullions
Mullion 40/21 (light) | |
Mullion 40/70 (heavy) | |
Mullion 30/12 (light) | |
Mullion 50/12 (light) | |
Mullion 21/50 MULTI (heavy) | |
Mullion 50/50 (heavy) | |
Mullion 50/125 (heavy) | |
Mullion 40/47 (light) | |
Mullion 21/73 (heavy) | |
Mullion 40/102 (heavy) |
Insect mesh (S= Standard / O= Optional)
Insect/bird mesh | O |
Watertightness (with insect mesh)
v = 0 m-s | A(99,2%) |
v = 0,5 m-s | B(98%) |
v = 1 m-s | B(97,0%) |
v = 1,5 m-s | C |
v = 2 m-s | C(89.9%) |
v = 2,5 m-s | C |
